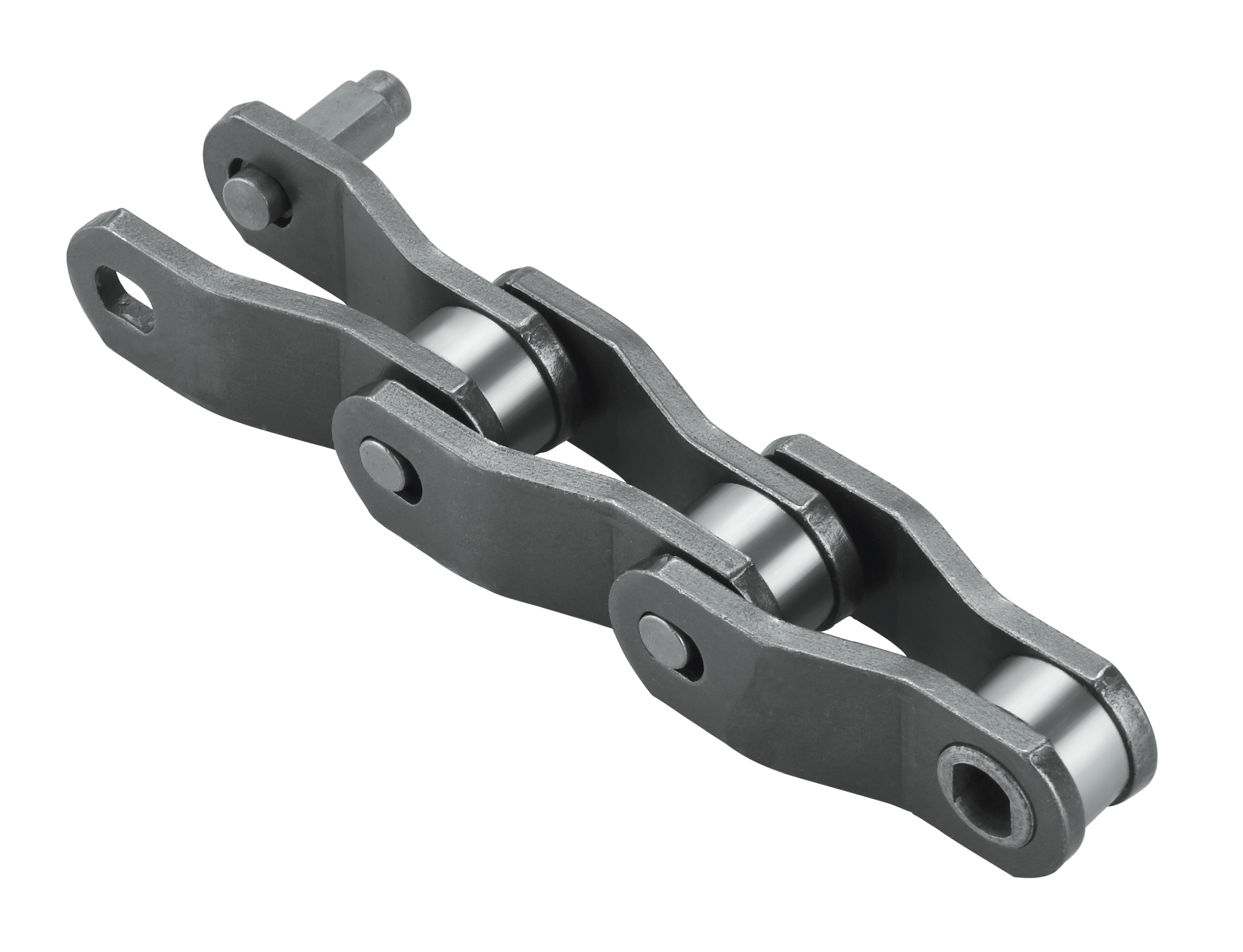

Galaxy Chains Pvt. Ltd. manufactures high-performance bottling chains, including rivet-type and detachable-type variants, designed for smooth and efficient conveying in beverage, packaging, and bottling industries. These chains ensure reliable movement of bottles and containers across production lines with precision and stability.
Back to Bottling Plant Conveyor Chains

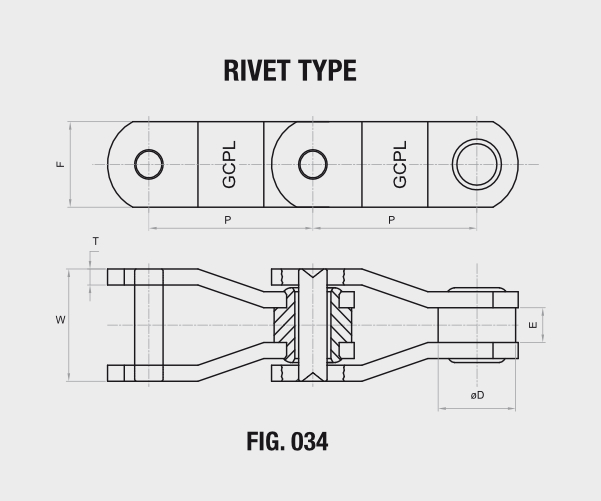

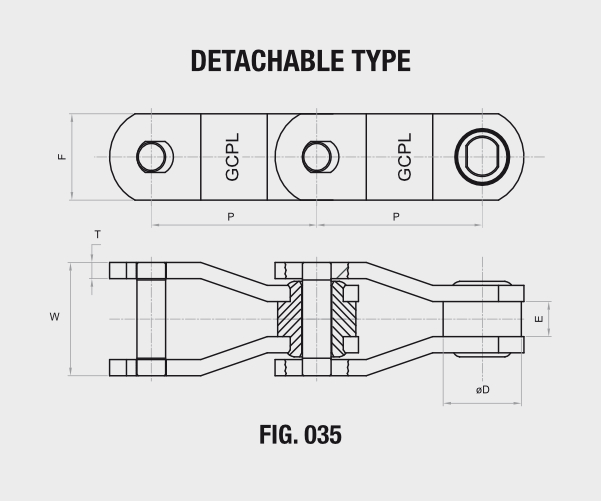

Dimensional data for rivet-type and detachable-type bottling chains (European series) — pitch, roller diameter, plate height, and tensile ratings.
| CHAIN NO. | PITCH P | E | D | W | F | T | BREAKING LOAD (KGF) |
|---|---|---|---|---|---|---|---|
| 11455 | 63.5 | 14.0 | 30.0 | 44.0 | 32.0 | 6.0 | 5500 |
| 11465 | 63.5 | 14.0 | 30.0 | 44.0 | 32.0 | 6.0 | 6500 |
| CHAIN NO. | PITCH P | E | D | W | F | T | BREAKING LOAD (KGF) |
|---|---|---|---|---|---|---|---|
| 12665 | 63.5 | 13.0 | 30.0 | 44.0 | 32.0 | 6.0 | 6500 |
Contact Galaxy Chains Pvt. Ltd. for custom lengths, attachments, and full catalogue data.
Galaxy Chains Pvt. Ltd. is a trusted bottling chains manufacturer in India, supplying rivet-type and detachable-type chains for the beverage and packaging industries. Our chains are designed to deliver durability, smooth operation, and reliable performance across high-speed production environments.
Contact our technical team to discuss your chain requirements or request a custom quotation.
